Charge with confidence, backed by uncompromising safety. Built with heavy-duty fireproof and explosion-proof steel, our charging cabinet features whole-unit short circuit, lightning, and leakage protection, plus per-compartment temperature sensing and optional aerosol fire suppression. Automatic cooling maintains optimal conditions, while 4G connectivity enables remote monitoring. Voice guidance, timed charging, and auto-stop deliver a seamless experience — ideal for fleets, logistics, and commercial facilities.

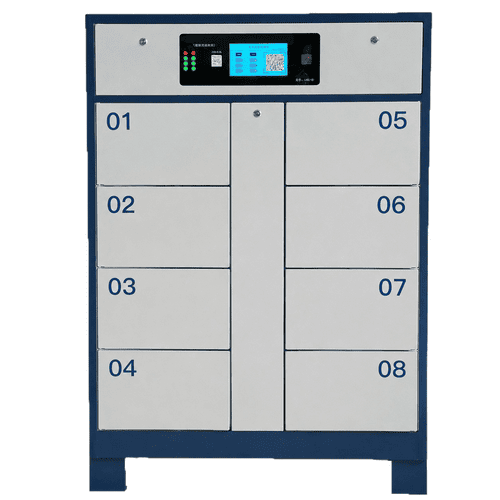

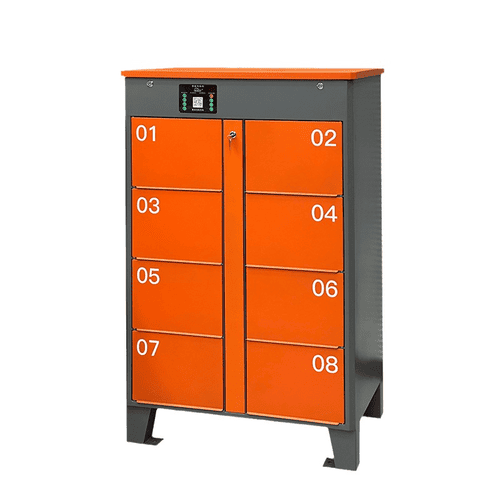

Product Name | 8-Bay Charging Cabinet | |
Cabinet Dimension | 510*1025*1530mm（D*W*H）Subject to final product | |
Compartment Size | 214*314*480mm(H*W*D) | |
Charging Parameters | Input Voltage | AC 180-265V |
Charging Mode | National Standard Socket | |
Static Power | 3W | |
Max. Total Cabinet Power | 6000W | |
Power Distribution | Single-phase AC220V, 4-6mm² cable | |
Output Voltage | AC220V | |
Maximum Output Current | 8A per compartment | |
Maximum Charging Power | 1500W | |
Compartment Indicator Light | Green light = empty compartment; Red light = charging; Flashing = fully charged | |
Function Design | Voice Broadcast | Supported |
Network Access | 4G Full Netcom | |
External Communication Protocol | MQTT-based Protocol | |
Charging Modes | Timed charging, auto-stop when fully charged | |
Water Immersion Detection | Optional | |
Safety Design | Material | Cold-rolled steel plate, eco-friendly, fireproof & explosion-proof |
IP Rating | IP45 | |
Safety Features | Short Circuit Protection | Whole unit |
Lightning Protection | Whole unit | |
Earth Leakage Protection | Whole unit | |
Over-temperature Protection | Whole unit & each compartment equipped with temperature sensor and lighting | |
Fire Suppression Device | Built-in aerosol fire extinguisher optional for each compartment | |
Automatic Cooling Fan | Cooling fan automatically controlled according to cabinet temperature | |
