INFACTOR's smart fast charging solution combines high-efficiency charging hardware with a cloud-based management platform, designed for operators, fleet owners, and property managers. From single-unit residential deployments to large-scale shared e-bike networks, we deliver a complete, revenue-ready system — backed by OEM/ODM customization.
Attribute | Parameter | |||

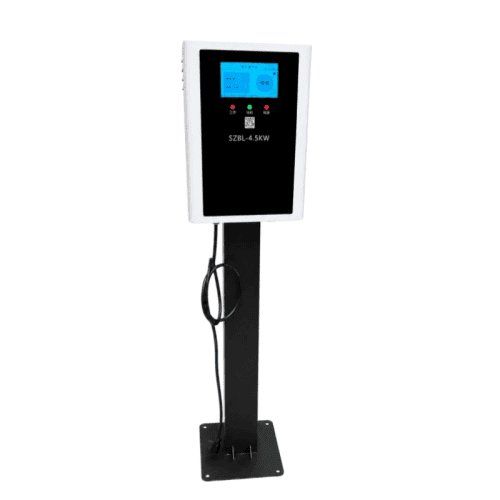

Model | SZBL-4.5KW/SZBL-9KW/SZBL-13.5KW/SZBL-20KW | |||
Max Power | 4.5KW/9KW/13.5KW/20KW | |||
Max Output Current | 70A/140A/210A/220A | |||
Output Voltage Range | 40-88V DC/40-88V DC/40-88V DC/30-120V DC | |||
Input Voltage Range | 176-265V AC/176-265V AC/176-265V AC/323-480V AC | |||
Communication Method | RS485, 4G | |||
Wiring Requirement | ≥4mm² National Standard Copper Core Flame Retardant Wire/≥4mm² National Standard Copper Core Flame Retardant Wire, Increased Gauge/≥4mm² National Standard Copper Core Flame Retardant Wire Recommended wire diameter ≥16mm² | |||
Applicable Scenarios | Small Stations, Household Use, Low Traffic Parking Lots/Medium-sized Stations, Community Parking Lots, Food Delivery/Courier Stations/Large Stations, Commercial District Parking Lots, Shared E-bike Operation & Maintenance Points/Large Shared E-Scooter O&M Center and Commercial Complex in the Core Business District. | |||
Environmental Usage Requirements | ||||
Item | Operating Environment | Storage Environment | Remarks | |
Temperature | -20℃ ～+50℃ | -30℃～ 80℃ | No condensation, over-temperature derating protection triggers when internal temperature reaches 80℃ | |
Relative Humidity | 5%-95% | 5%-95% | Hot and humid environment must meet +50℃, 2 cycle requirements | |
Altitude | ≤2000m | - | Special customization required if out of range | |
